Set Milking Point ID Numbers

It is necessary to assign the correct stall numbers to each milk meter. This allows AfiFarm to identify which device is communicating and assign the correct data to cows.

Note: The highest Stall ID number allowed is 64. In parlors larger than 64 milking points, multiple communication lines are needed for connecting the milk meters to the system!

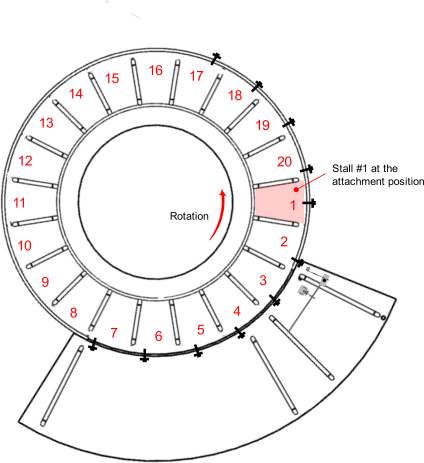

In rotary parlors, the stall numbers are sequential, with milking point number 1 at the attachment position when the parlor is at rest:

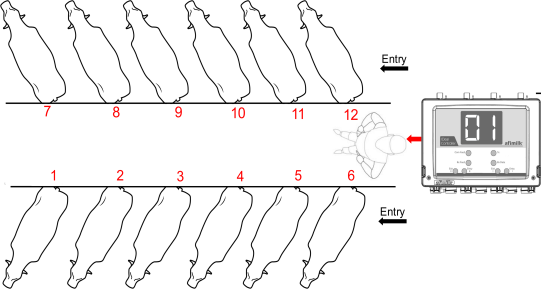

In parallel or herringbone parlors, the MPC ID numbers are defined as follows:

Stand with your back to the ID controller, facing the milking pit. Its location does not matter.

  • The stall on the left side are the low-numbered stalls. Stall #1 is furthest from the entry gate.

  • The stalls on the right side are the high-numbered stalls.

To enter the MPC stall ID number

  1. Press Wash mode (LED light is ON).

  2. Press four times, then press .

    The stall number now appears as .

  3. Type the ID number for the stall in a two-digit format (example: for stall number 3 type 03).

  4. Press to save.

Note: To view the milk meter ID number, reset its power OR press and simultaneously.
