Replace the Rubber Connectors

Rubber parts in the milking system are considered consumable parts. These need to be replaced periodically.

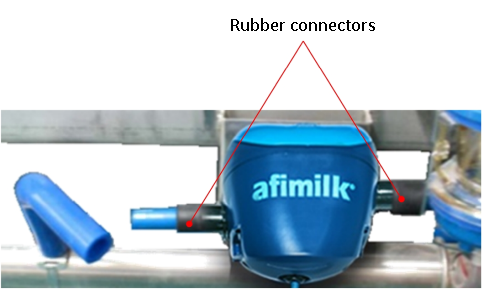

We strongly recommend replacing the two AfiLab rubber connectors once a year.

Before replacing the rubber connectors, make sure you have the following replacement components from Afimilk:


Name

Description

Tube Connectors

Rubber Tube Connector connects to milk meter and Sampler Replacement Tube.

To replace the rubber connector:

  1. Disconnect the elbow pipe and remove the sampler replacement tube and the rubber connector.

  2. Remove the AfiLab from its bracket, and then remove and replace the rubber connector attached towards the milk meter.

  3. Connect the AfiLab inlet to the new milk meter rubber connector.

  4. Place the new rubber connector on the AfiLab outlet, and then re-connect the sampler replacement tube and the elbow pipe.

Note: Perform the above actions gently to avoid changing the device alignment.
